The WT18 rim wheelset is a high-performance, ultra-lightweight road bike wheelset made of 100% carbon fiber with a UD matte finish. It features a 25mm outer width and 18mm inner width, making it compatible with 700 x 25C clincher tires. The water drop hole spokes, with 20 in the front wheel and 24 holes in the rear wheel, along with Pillar spokes and nipples, provide increased durability and performance. The Trifox T18 aluminum alloy bicycle hub has a quick-release design, with front hub spacing of QR x 100mm and rear hub spacing of QR x 130mm. Compatible with rim brakes, this carbon fiber wheels support Shimano 8/9/10/11S or SRAM XDR 12S drivetrains. With two bearings in the front hub and four bearings in the rear hub, the high-quality LLU contact bearings ensure strong sealing. The quick-release freehub allows for easy disassembly and installation without the need for tools. With 40mm/45mm/50mm/60mm depth options available, the WT18 road bike wheels cater to various rider preferences and needs.
- Compatible with both Shimano and SRAM drivetrains
- High-quality LLU contact bearings in the WT18 wheelset
- Quick-release freehub enables tool-free disassembly and installation
- The combination of advanced materials and thoughtful design
- 100% carbon fiber construction for lightweight and durable riding experience
WT18 bicycle wheels feature 100% carbon fiber construction, offering ultra-lightweight performance and a UD matte texture.

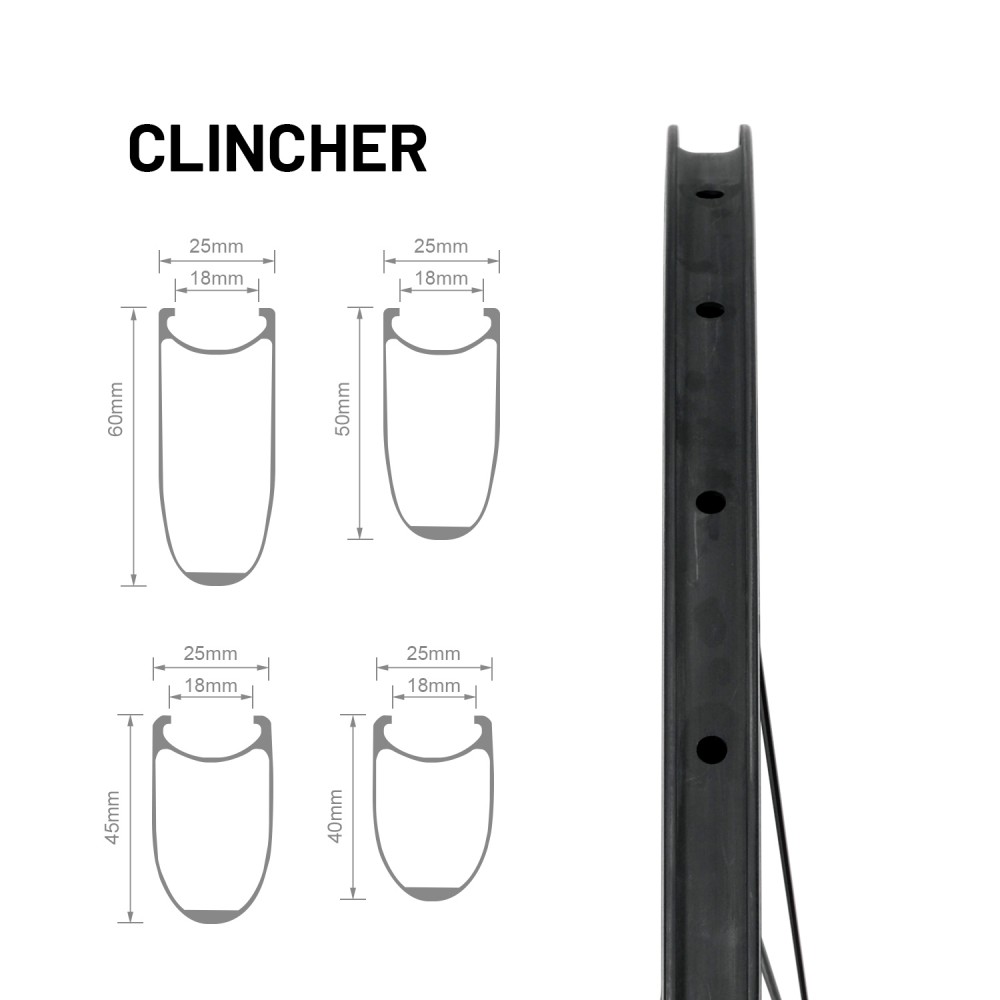

With 25mm outer width, 18mm inner width, and compatibility with 700 x 25C clincher tires, the WT18 carbon wheel set offers 40mm/45mm/50mm/60mm depth options to suit various preferences.
Featuring water drop hole spokes with 20 in the front and 24 in the rear, the WT18 bicycle wheelset uses Pillar spokes and nipples for increased durability.

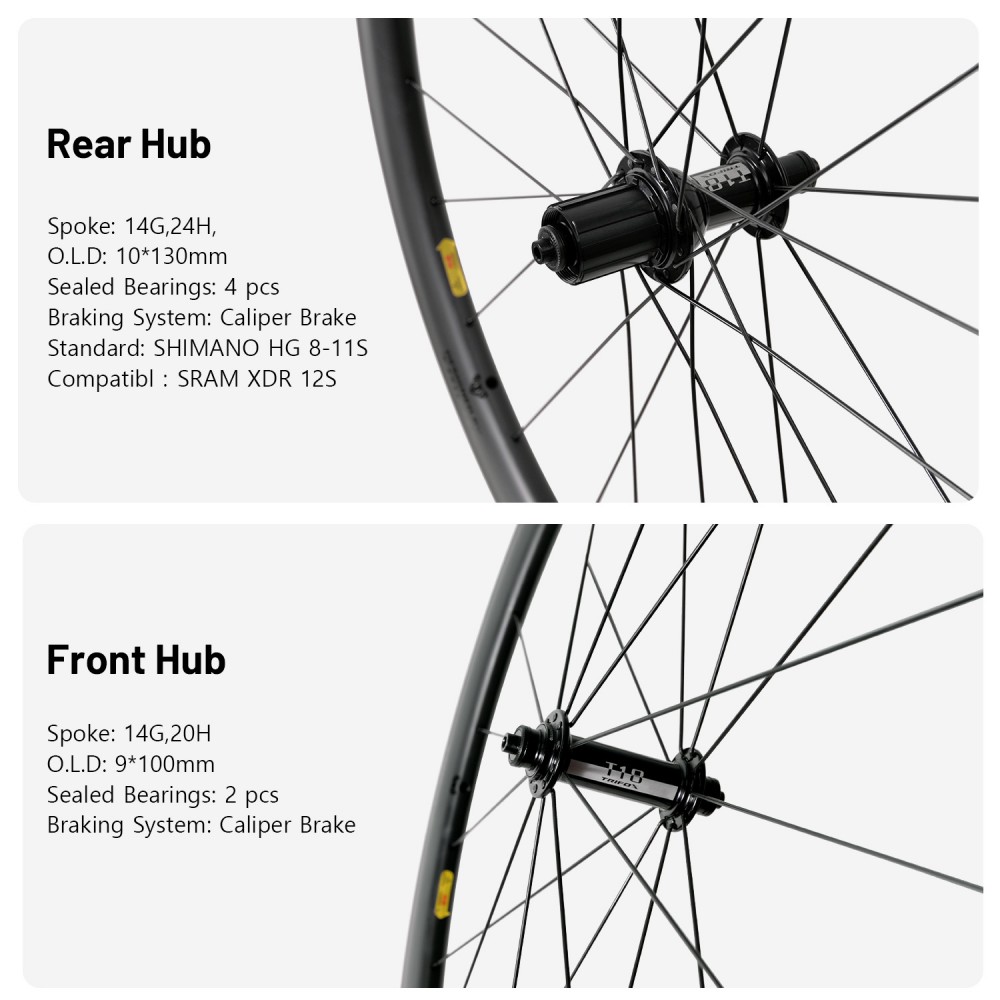

The T18 aluminum alloy hub features a quick-release design, with front hub spacing of QR x 100mm and rear hub spacing of QR x 130mm.
WT18 carbon wheels are compatible with rim brakes and supports Shimano 8/9/10/11S or SRAM XDR 12S drivetrains.
Equipped with high-quality LLU contact bearings that provide strong sealing, the WT18 bike wheels have two bearings in the front hub and four bearings in the rear hub.
Featuring a quick-release freehub, the WT18 bike wheelset allows for easy disassembly and installation without the need for tools, ensuring convenient maintenance and service.
1 Pair of Wheelsets with Hubs Included
1 Pair of Rim Tapes
1 Pair of Brake Pads
1 Pair of Quick Releases
6 Pcs Spare Spokes

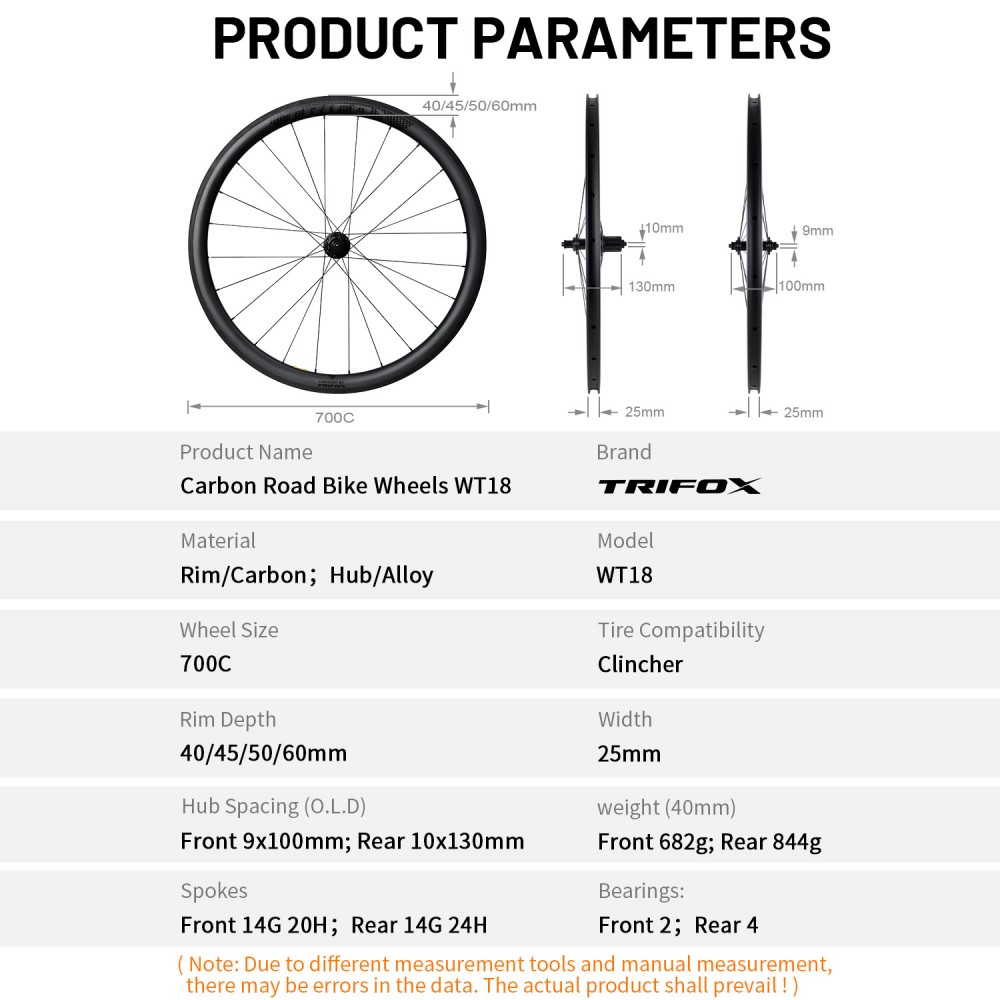

Model | WT18 |
---|---|
Type | Super Light Road Bike Wheelset |
Wheel Size | 700C |
Tire Compatibility | Clincher |
Rim Depth | 40mm/45mm/50mm/60mm |
Inner Width | 18mm |
Outer Width | 25mm |
Rim Finish | UD / Matte |
Rim Material | 100% Carbon Fiber Toray T800 |
Front Spoke | Water Drop Hole, 14G, 20H |
---|---|
Rear Spoke | Water Drop Hole, 14G, 24H |
Spoke Type | Pillar Stainless Steel |
Nipple Type | Pillar Alloy Secure Lock |
Hub Model | Trifox T18 Rim Brake Hub |
---|---|
Hub Spacing (O.L.D) | Front QR x 100mm; Rear QR x 130mm |
Hub Bearing | Front 2 Bearings; Rear 4 Bearings |
Hub Material | Aluminum Alloy |
Brake Compatibility | Rim Brake |
Attachment | Quick Release |
Freehub Type | 4 Pawls |
Cassette Compatibility | Shimano 8/9/10/11S / SRAM XDR 12S |
Rider Weight Limit | 220lb / 100kg |
---|---|
Recommended Tire Sizes | 700 x 25C |
Recommended Tire Pressure | 90-135psi |
Package Content | 1 Pair of Carbon Road Bike Quick Release Wheels WT18 (come with hub already) 1 Pair of Rim Tapes (Nylon Rim Tape Clincher, Wheel Strip Inner Tube Pad) 1 Pair of Brake Pads 1 Pair of Quick Releases 6 Pcs Spare Spokes |
Guarantee | 2 years |
Size | Weight (+-20g) | Weight (+-20g) |
---|---|---|
40mm | 760g Front | 870g Rear |
45mm | 754g Front | 916g Rear |
50mm | 754g Front | 928g Rear |
60mm | 782g Front | 948g Rear |
