700C AERO Carbon Road Frameset X8 V Brake

Road Bike Frame

trifoxbike

$789.99 $599.00
Option
Color
Red
Yellow
-
+
In stock
$599.00
NOTE: Please pay through Paypal to ensure there is no problem with your payment. If you do not have a PayPal account, please register one first to checkout your order.

700C AERO Carbon Road Frameset X8 V Brake


Brand Trifox
Model X8
Product Name Carbon Road Frame X8
Type Road Frame
Available Size 48 / 51 / 54 / 56 cm
Available Color Yellow / Red
Material T800 Carbon Fiber
Finish Glossy
Braking System V Brake
Fork Rake / Offset 43mm
Installable DI2 & Mechanical
saddle installation method: Lock left and right
Derailleur Cables Routing Internal
Bottom Bracket BSA BB68 (φ 34mm, L 68mm)
Headset 1 1/8" to 1 1/2" Tapered Integrated
Max Wheels & Tire Size 700 x 25C
O.L.D Front: φ10x100mm
Rear: φ10x130mm
Style Quick Release
Package Content 1 x AERO Carbon Road Frame X8
1 x AERO Carbon Road Fork
1 x AERO Carbon Lay-back Seatpost
1 x Quick Release Rear Derailleur Hanger
1 x Headset
  • Trifox X8 adopts carbon fiber integrated molding process, three-dimensional guide type integrated aero pipe type, internal routing aerodynamic propel design, full sense of strength, the combination of sports and equipment aesthetics, and the special processing method of carbon fiber makes the frame without Joint gaps, with consistent visual aesthetics that other frame materials don't have.
  • The internal routing design, the wiring from the upper tube of the frame head, is simple and beautiful.
  • The carbon fiber raw materials is derived from Toray T800/T1000 high-quality. The carbon fiber is flexible on the outside and rigid on the inside. It is lighter than aluminum alloy, but more strength than steel. It has the characteristics of corrosion resistance, shock resistance and high modulus. It is important materials and always used in national defense, military and civilian applications. It not only has the inherent characteristics of carbon materials, but also has the soft processability of textile fibers. It is a new generation of reinforcing fibers which has many excellent properties.
  • Ultra-light carbon fiber front fork: aerodynamic design of breaking wind, taking into account lightness and strength, riding faster and more comfortable.
  • Carbon fiber windbreaking aero seatpost: The lay-back drop-shaped tube design, with a smaller windward surface, effectively reduces the wind resistance of cycling, and makes riding more enjoyable.
  • Hidden seatpost clamp, beautiful and fashionable.
  • 3-year warranty service.

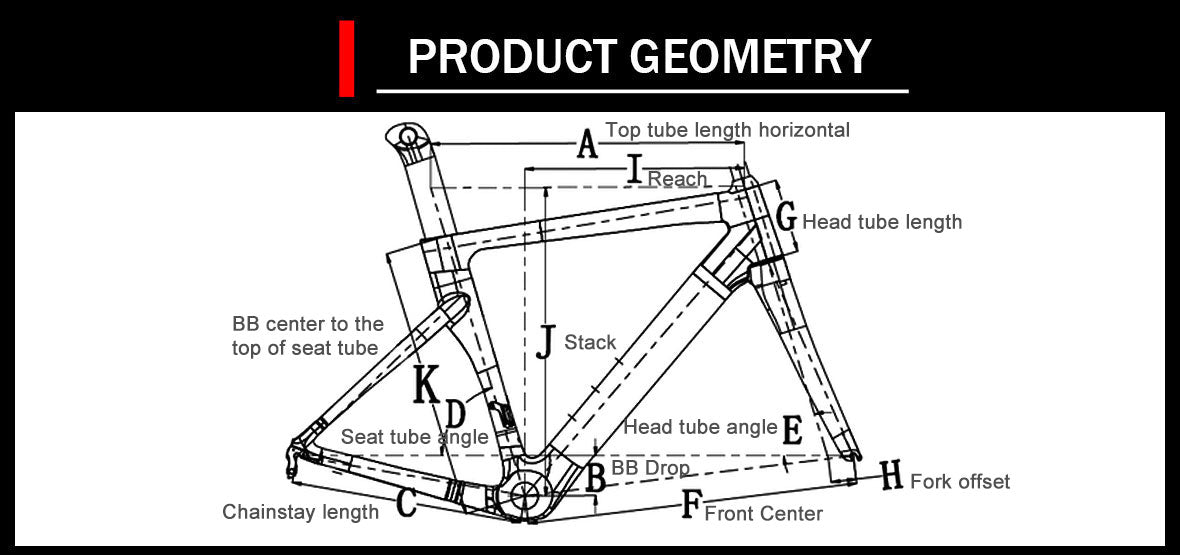

  • 700C AERO Carbon Road Frameset X8 Geometry
    Size 48cm 51cm 54cm 56cm
    A(mm) Top tube length horizontal 519 535 550 565
    B(mm) BB Drop 68 68 68 68
    C(mm) Chainstay length 411 411 411 411
    D(°) Seat tube angle 73 73 73 73
    E(°) Head tube angle 70.5 72.2 73.1 73.5
    F(mm) Front Center 568 570 577 588
    G(mm) Head tube length 94 112 130 152
    H(mm) Fork offset 43 43 43 43
    I(mm) Reach 368 377 385 394
    J(mm) Stack 495 518 538 560
    K(mm) BB center to the top of seat tube 429 454 474 498

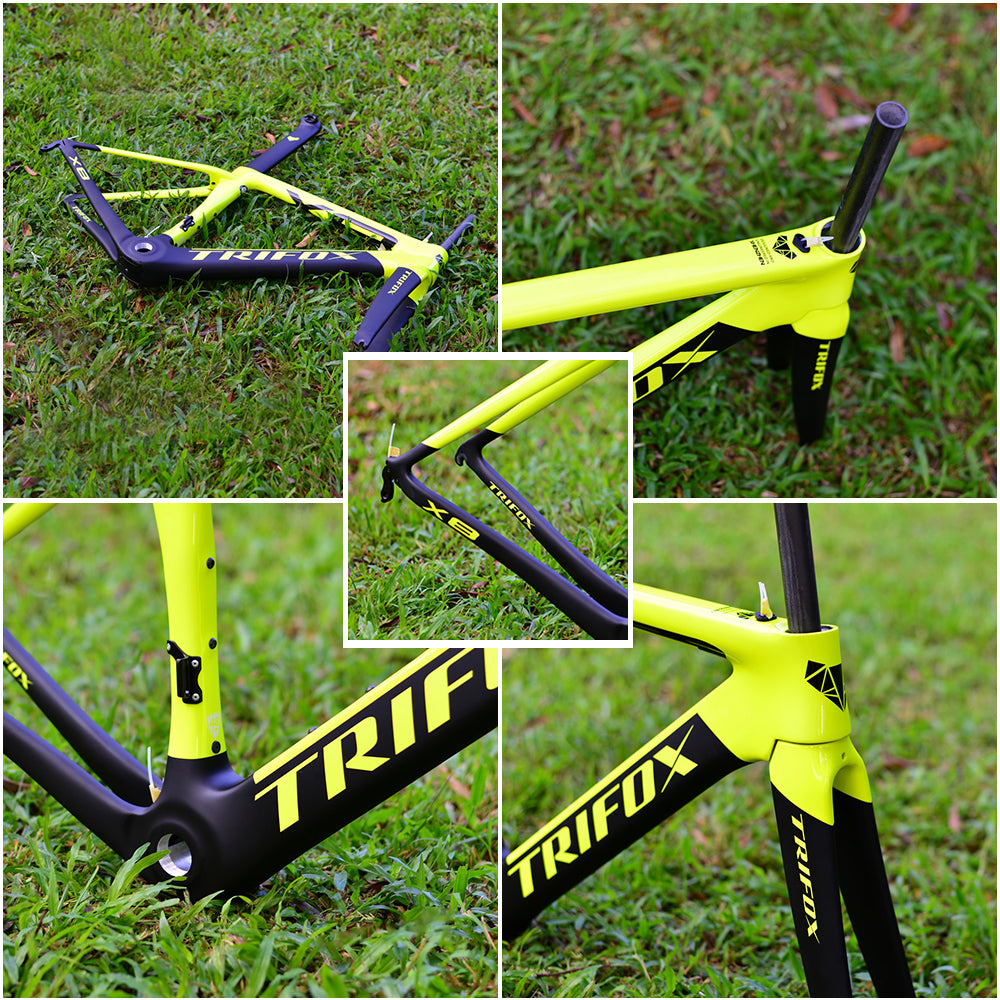

    700C AERO Carbon Road Frameset X8 Deatails 1700C lightweight AERO Carbon Road Frameset X8 Deatails 2Trifox Bike Lightweight 700C AERO Carbon Road Frameset X8 Deatails 3
    Size / Components Weight
    48cm 1115g ± 20g
    51cm 1163g ± 20g
    54cm 1188g ± 20g
    56cm 1313g ± 20g
    AERO Fork 400g ± 2g
    AERO Seatpost 225g ± 2g
    Trifox Bike 700C Aero Carbon Road Bike Frameset X8 Real Shot
    Trifox Bike 700C AERO Carbon Road Bike Frameset X8 Package Content
