Carbon MTB Frame MFM100
-
15.5/S (150-165cm)
-
17.5/M(165-175cm)
-
19/L(175-185cm)
-
20.5/XL(Over 185cm)
- Overview
- Features
- Specs
- Sizing
- Geometry
- Service
- Customers Reviews
Full suspension bike frame MFM100 is a top-tier mountain bike frame designed for off-road enthusiasts seeking exceptional performance and durability. Constructed from high-quality T800 carbon fiber, this frame offers an ideal balance of strength, rigidity, and lightweight construction. With a Boost design with 148 x 12mm spacing, allowing for a stronger and stiffer rear wheel while accommodating up to 2.35" tire size and offers ample tire clearance for tackling various trail conditions with ease.
This design also enhances chainstay space, enabling the use of larger and faster flywheels, improved shock absorption, and increased comfort. The frame is equipped with a Trunnion rear shock mount for efficient pedaling and an asymmetric design that ensures a smooth structure and unobstructed cable movement, allow you to fine-tune your suspension setup for optimal performance and comfort. Additionally, the internal routing design contributes to a clean and tidy appearance. This bicycle frame offers excellent shock absorption and comfort, reducing rider fatigue during off-road rides or competitions.
- Full suspension carbon fiber mountain bike MFM100 possesses the soul of a formidable off-road vehicle, effortlessly conquering any obstacle in its path. It instills confidence as you tackle more rugged trails and offers forgiveness when your chosen route isn't ideal.
- 29er wheels excel at maneuvering the bike with precision and agility, even when navigating the most intricate trails.
- 68.5°Head Tube Angle headset cups provide the flexibility to fine-tune your bike's geometry for optimal handling, tailored to your specific preferences.
- Boost technology features a 148 x 12mm spacing that enables wider hub flange separation, resulting in a potentially stronger and more rigid rear wheel for enhanced performance.
- The internal cable routing feature provides a sleek and clean appearance for your bike, as well as offering improved aerodynamics and protection for the cables.
- With clearance for tires up to 2.35″, this bike effectively absorbs road bumps, ensuring a smoother and more comfortable riding experience;

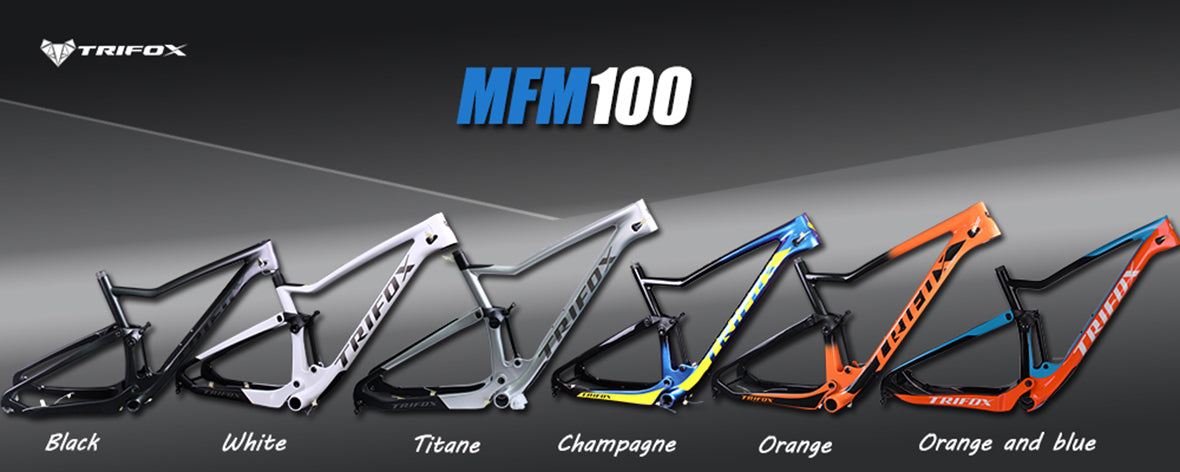

Dual Suspension Mountain Bike Frame MFM100 feature T800 carbon fiber, offering ultra-lightweight performance and a Glossy / Matte Finish.
By modifying both geometry and suspension settings, you can effortlessly customize your Session for a more advanced feel during race days or tone it down for leisurely park days.
Every cyclist, irrespective of their gender, physique, cycling technique, or skill level, is entitled to an outstanding bicycle.
Boasts excellent shock absorption and superior comfort. This feature can help reduce rider fatigue during both off-road adventures and competitive events.
The internal routing design features a well-organized and efficient wiring system that runs through the upper tube of the frame head. This not only simplifies the overall appearance but also adds an element of beauty to the bicycle's structure. By concealing the cables within the frame, it offers a clean and uncluttered look, enhancing the bike's visual appeal while maintaining its functionality.

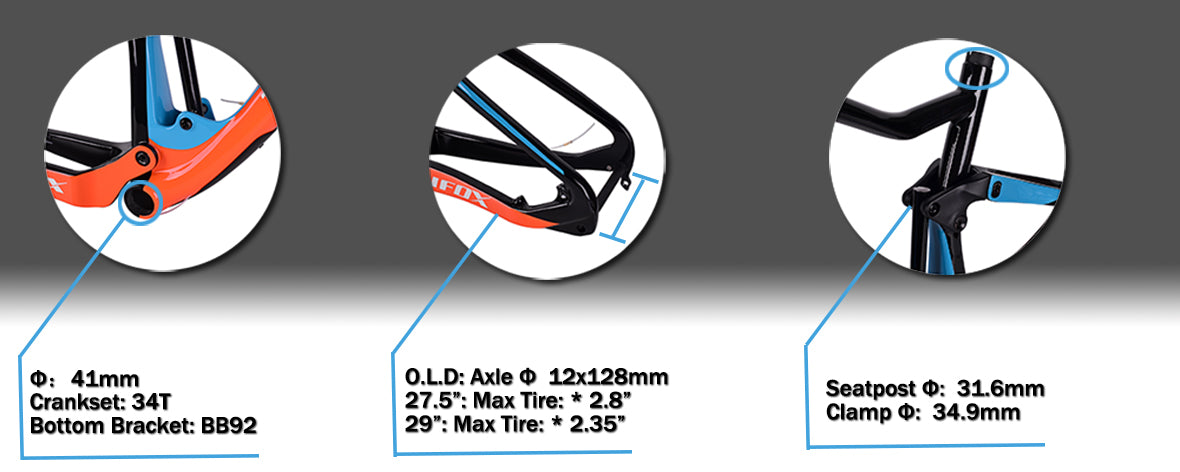

29er Full Suspension Carbon MTB Frame MFM100 utilizes a Press Fit BB92 Non-Threaded Bottom Bracket, compatible with both DI2 and Mechanical systems, for optimal performance.
Full suspension frame MFM100 is designed for swift performance, featuring 29er*2.35" wheels as standard, enabling you to confidently navigate diverse terrains.Boost offers a 148 x 12mm spacing, enabling the hub flanges to be spaced further apart, resulting in a potentially more robust and rigid rear wheel.

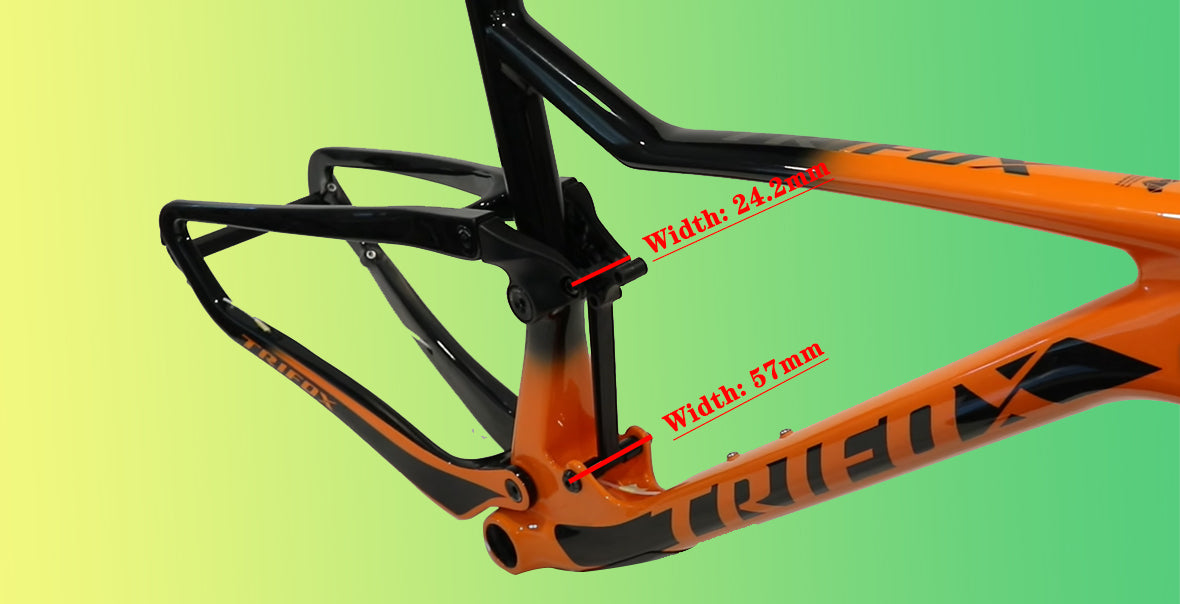

Intentionally shifted the rear shock's position to create a smoother bicycle structure and enable the carbon fiber to form a flawless linear configuration. By locking the rear shock absorber, we preserve space for cable movement on the left side, ensuring an unobstructed down tube that extends through the rear shock absorber to the primary pivot point.
1 x Carbon MTB Frame MFM100
1 x Thru Axle Skewer
1 x Rear Derailleur Hanger
1 set of rear shock absorber bushing screws
| Frame | Dual Suspension Mountain Bike Frame, T800 Full Carbon Fiber, Axle: Ø12*148mm BOOST Disc Brake, Internal Cable Routing, Press Fit BB92 Non-Threaded, Suitable Seatpost 31.6mm (Clamp: φ34.9mm) |
|---|---|
| Type | MTB Frame |
| Disc Brake Rotor | 160mm / 180mm |
| Crankset | Max 34T |
| Max Wheels & Tire Size | 29"*2.35" |
| Seatpost insertion length | 7-12cm |
| Finish | Glossy / Matte |

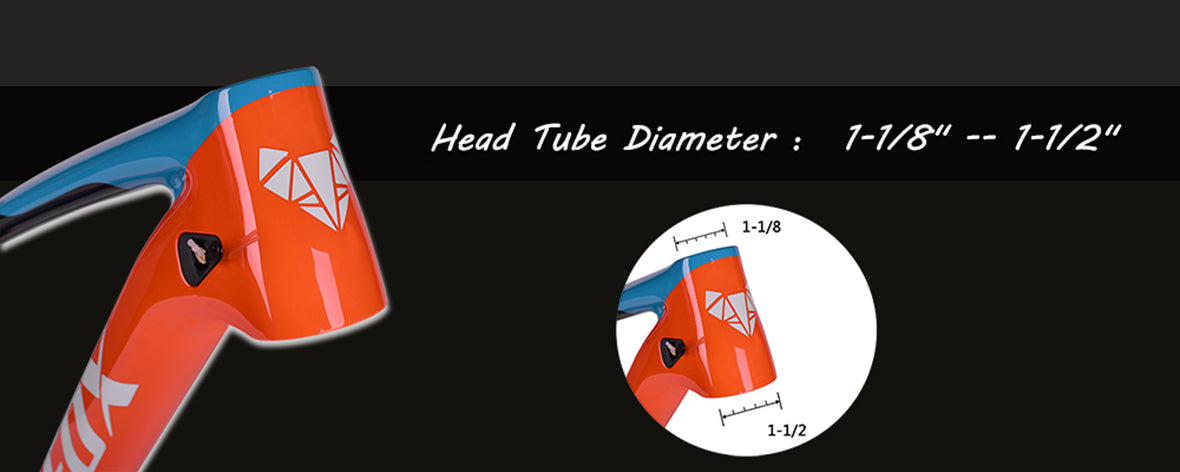

| Head Tube | FSA NO. ACB1 42(1-1/8"-1-1/2") |

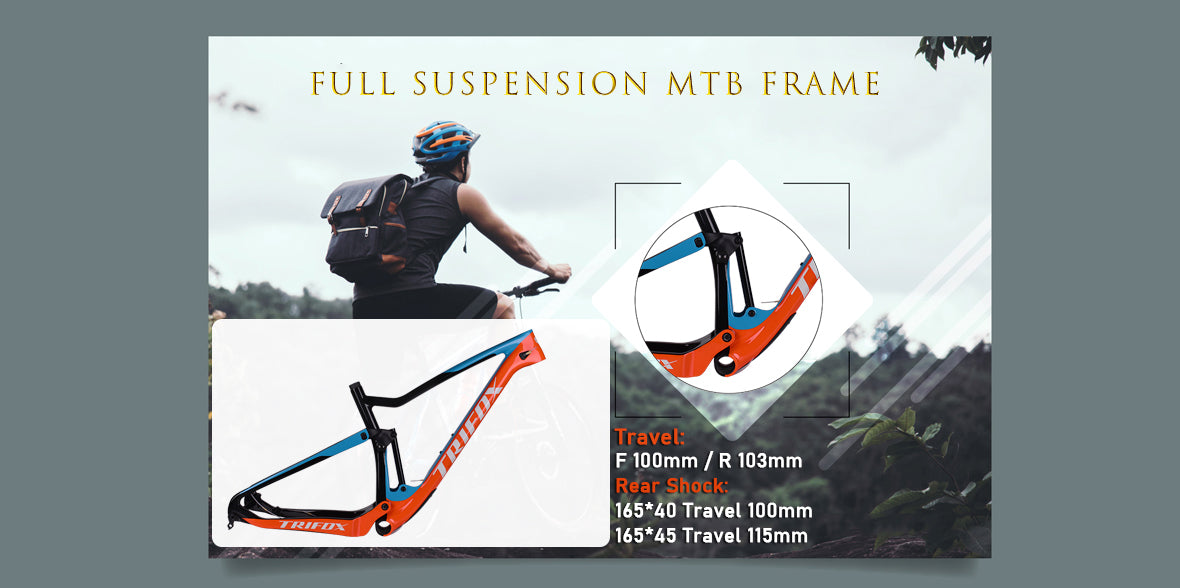

| Rear Shock | 165*40 Travel 100mm ; 165*45 Travel 115mm |
| Warranty | 2 years |
| Weight | 15.5″ - 2170g ± 20g 17.5″ - 2250g ± 20g 19″ - 2235g ± 20g 20.5″ - 2420g ± 20g |
| Package Content | 1 x Carbon MTB Frame MFM100 1 x Thru Axle Skewer 1 x Rear Derailleur Hanger 1 set of rear shock absorber bushing screws |
We hold the authority to modify the product details on this platform at any given time without prior notice. These alterations may pertain to equipment, specifications, models, colors, materials, and pricing. Owing to supply chain disruptions, we may replace compatible parts at any moment, without providing any advance notice. The prices displayed are recommended retail prices suggested by the manufacturer.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
| Size | Rider Height | Inseam |
|---|---|---|
| 15.5" / S | 150cm ~ 165cm 4'11"-5'3" | 66-71cm 26"-28" |
| 17.5" / M | 165cm ~ 175cm 5'3"-5'7" | 71-76cm 28"-30" |
| 19" / L | 175cm ~ 185cm 5'7"-5'11" | 76-81cm 30"-32" |
| 20.5" / XL | 185cm ~ 190cm 5'11"-6'3" | 81-86cm 32"-34" |

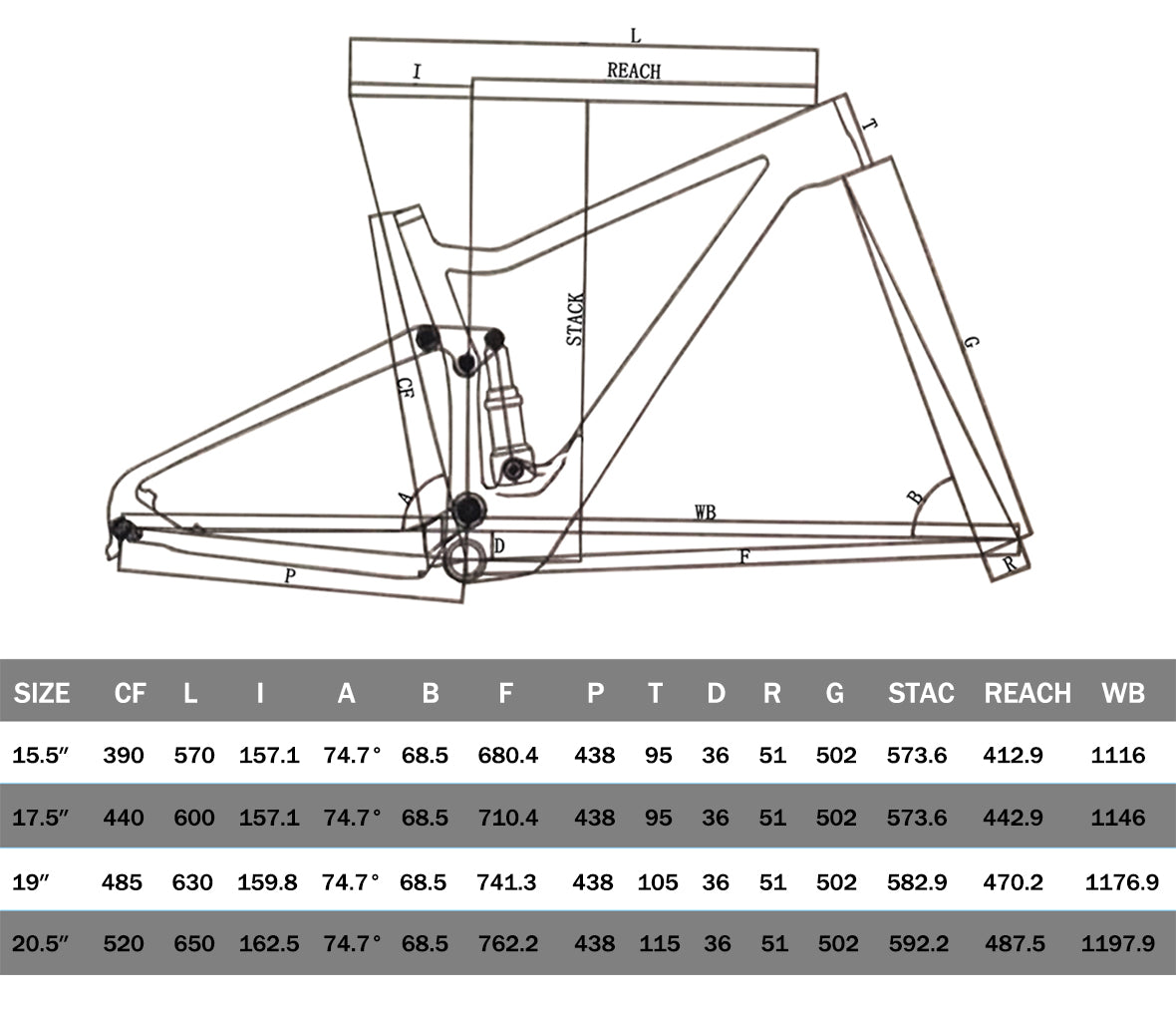

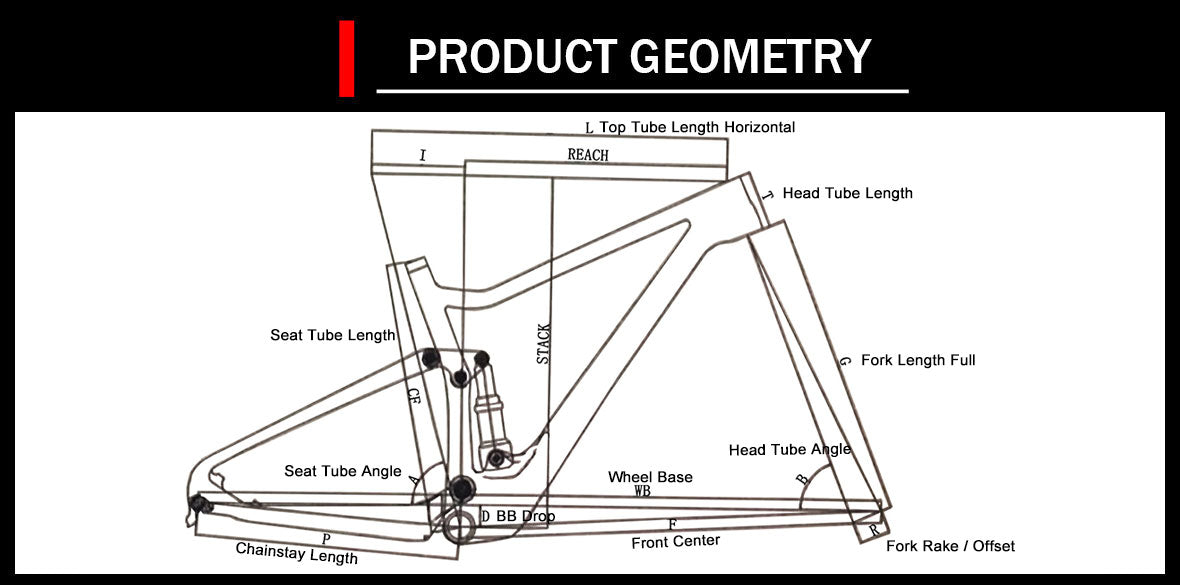

| Place | Frame | 15.5'' | 17.5'' | 19'' | 20.5'' |
|---|---|---|---|---|---|
| A (°) | Head Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
| B (°) | Seat Tube Angle | 74.7° | 74.7° | 74.7° | 74.7° |
| C (mm) | Chainstay Length | 438 | 438 | 438 | 438 |
| D (mm) | BB Drop | 36 | 36 | 36 | 36 |
| E (mm) | Wheel Base | 1116 | 1146 | 1176.9 | 1197.9 |
| F(mm) | Seat Tube Length | 390 | 440 | 485 | 520 |
| G (mm) | Stack | 573.6 | 573.6 | 582.9 | 592.2 |
| H (mm) | Top Tube Length Horizontal | 570 | 600 | 630 | 650 |
| I (mm) | Reach | 412.9 | 442.9 | 470.2 | 487.5 |
| J (mm) | Head Tube Length | 95 | 95 | 105 | 115 |
| K (mm) | Fork Length Full | 502 | 502 | 502 | 502 |
