Carbon Road Bike Frame X16TA Bundle Sale

1 Reviews
$ 1245.90
Painting:
Size:
  • 44cm
  • 49cm
  • 52cm
  • 54cm
  • 56cm
  • 58cm
Width:
  • 25mm
Depth:
  • 60mm
  • 38mm
Qty:
3
Out of stock
Warranty policy, Learn More
  • Product Details
  • Customers Reviews

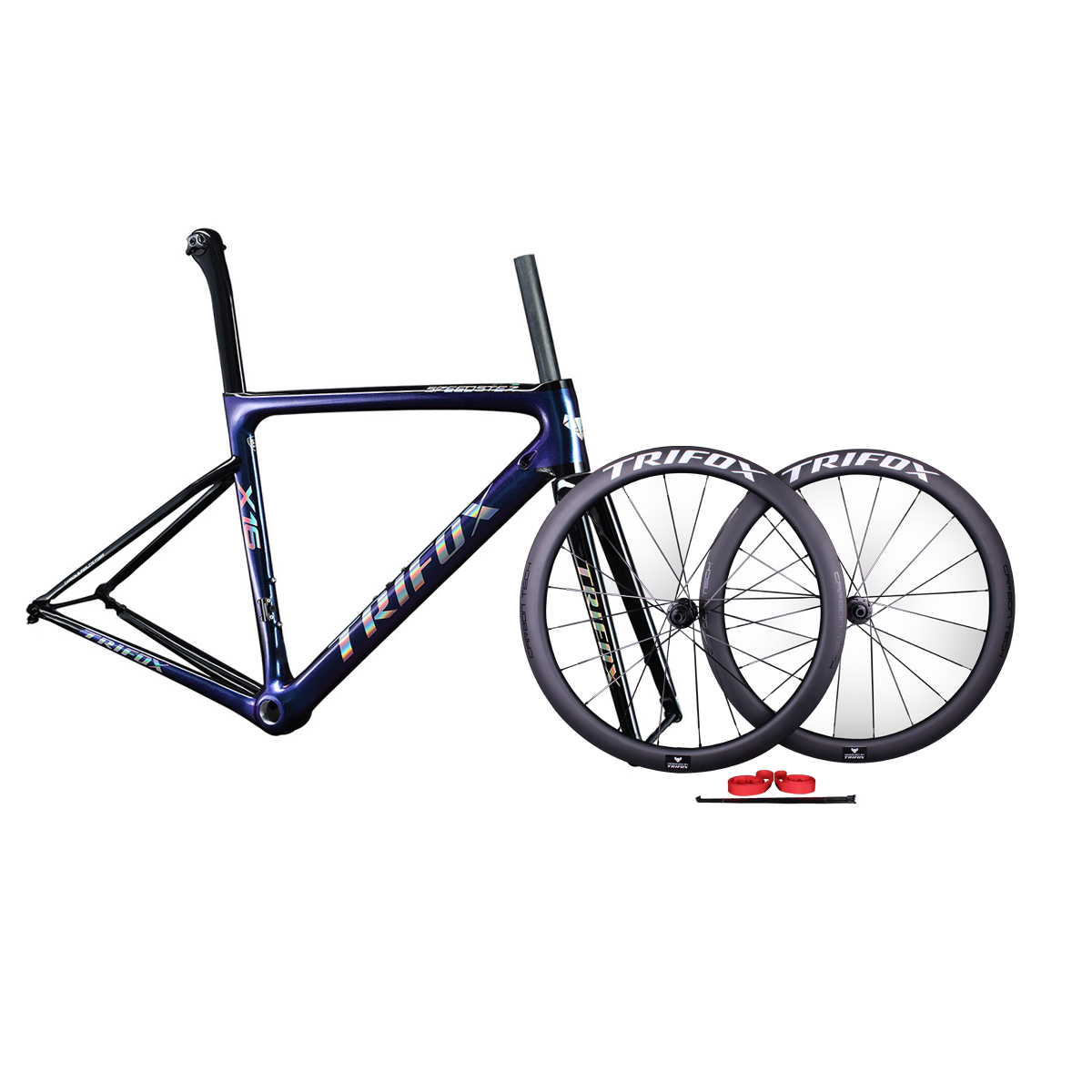

Carbon Road Frame X16TA + Clincher Wheelset RW100TA

Lightweight Carbon Road Frameset X16 with Disc Brake Wheelset RW100

Parameter

X16 Road Frameset
BrandTrifox
ModelLightweight Carbon Road Frameset X16
MaterialT800 Full Carbon Fiber
Headtube1-1/8" To 1-1/2" Tapered Integrated
Bottom BracketBSA - BB68 (φ 34mm, L 68mm)
installableDI2 / Mechanical derailleurs
Disc Size160mm, 140mm both
Max Wheels & Tire Size700 x 25C
Available sizes44 / 49 / 52 / 54 / 56 / 58 cm

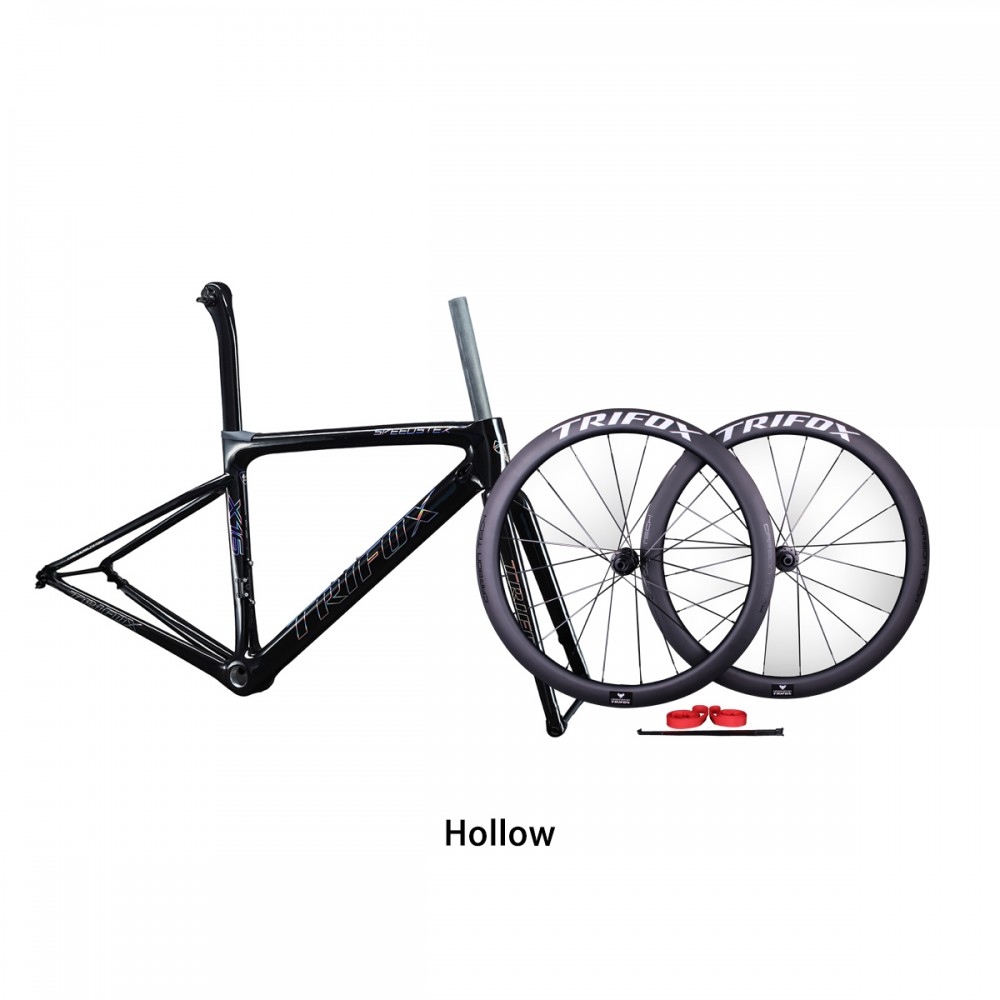

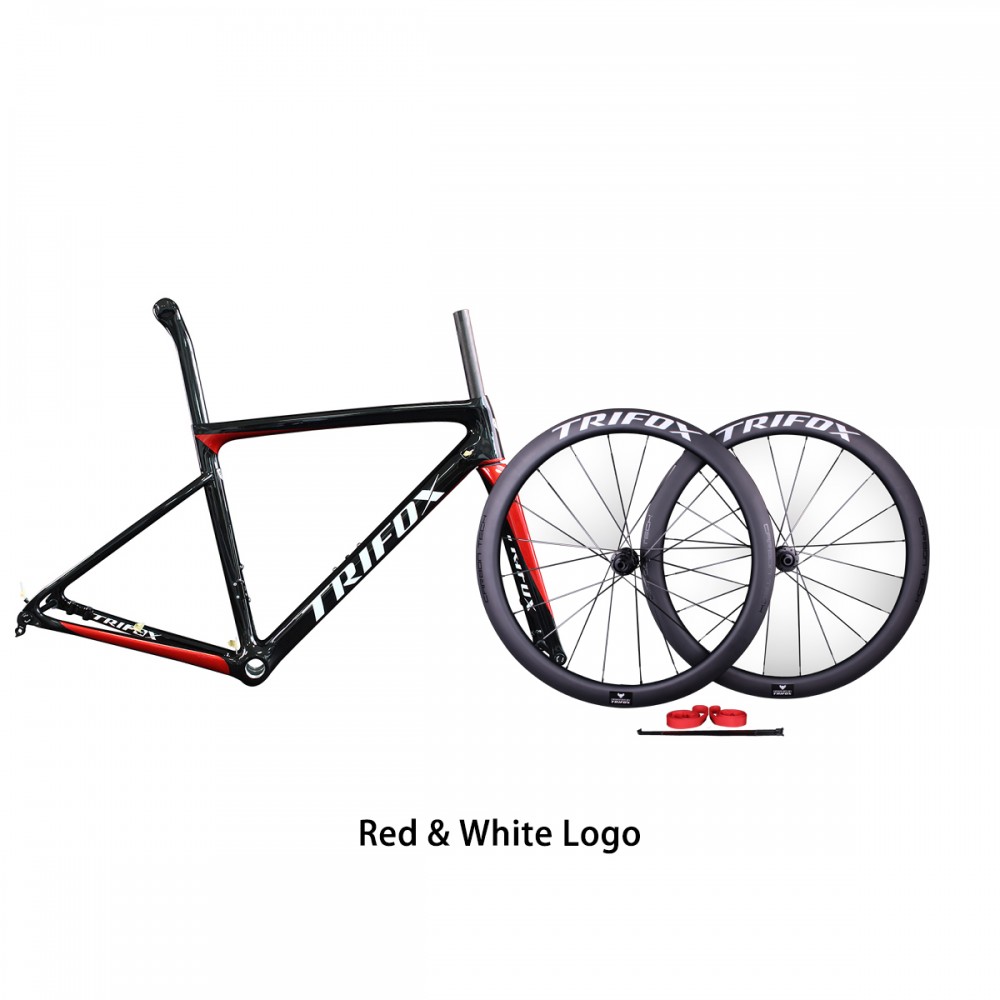

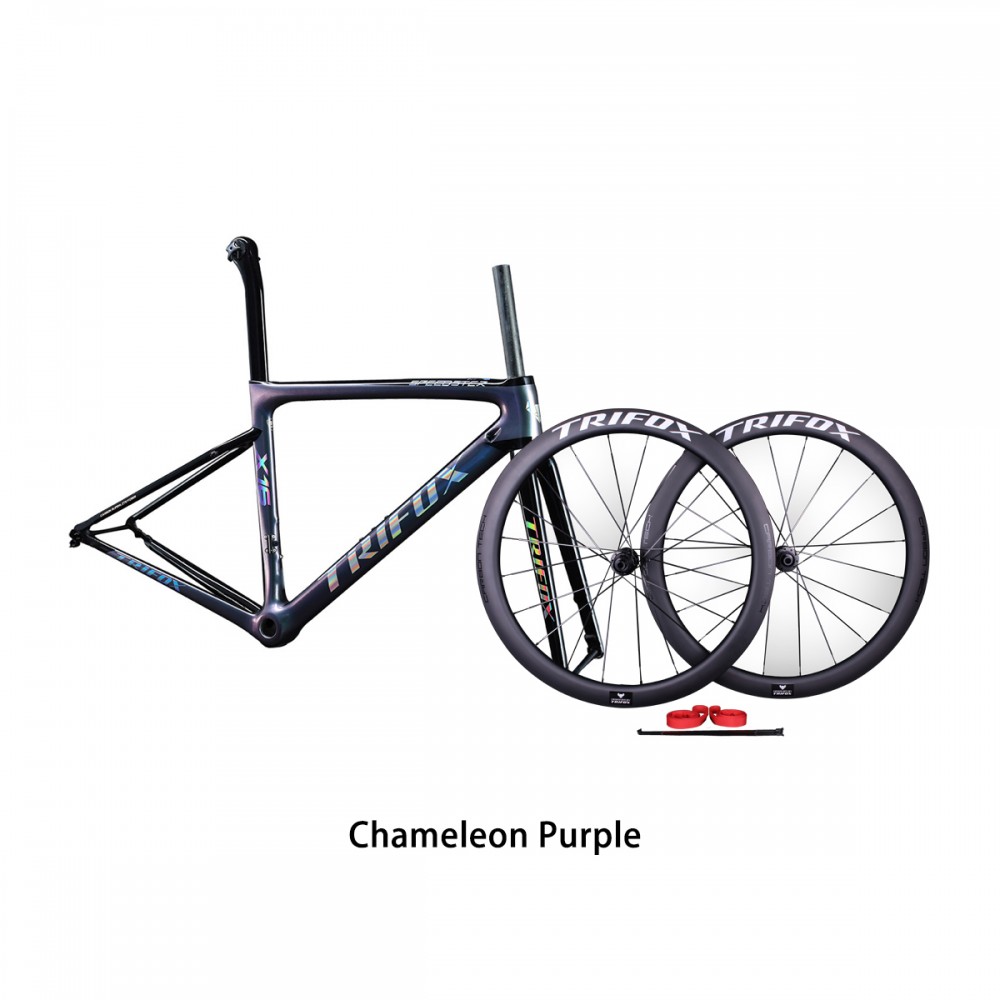

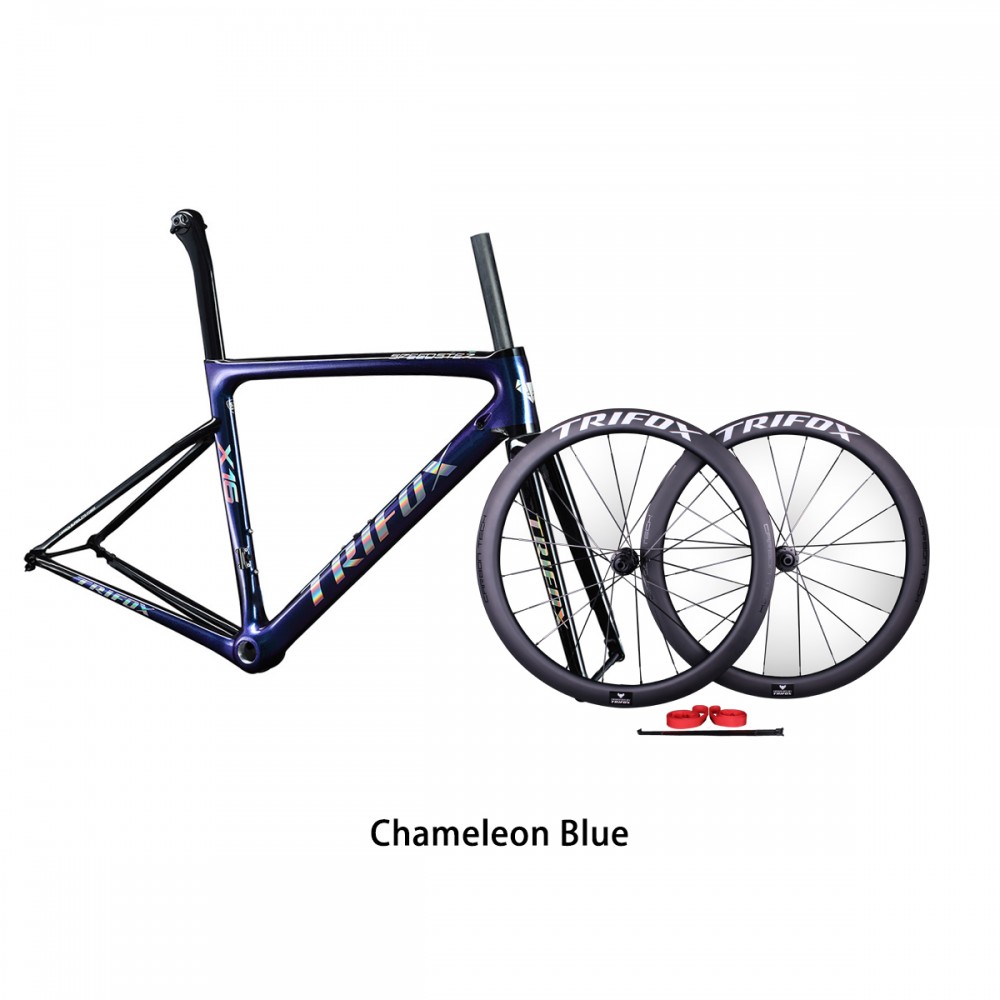

Available ColorsChameleon Blue / Chameleon Purple / Hollow / Matte Black / Red White Logo
O.L.DFront: φ12x100mm; Rear: φ12x142mm
Fork Rake / Offset50mm
Braking SystemDisc Brake (clipper holder: Flat Mount)
saddle installation methodLock left and right (Round Rail)
FinishMatte black and glossy painting
WeaveUD
TypeThru Axle
RW100 Road Wheelset
BrandTrifox
ModelDisc Brake Carbon Road Wheelset RW100
TypeThru Axle
MaterialToray T700 Carbon Fiber
Size700C
FinishUD / Matte
Holes(Front/Rear)20/20; 20/24;
Width23 / 25mm
Depth38 / 45 / 50 / 60mm
O.L.DFront 100mm, rear 130mm
Front Hub2 bearings
Rear Hub4 bearings
Hub materialIron aluminum alloy
Cassette CompatibilityFit for 8/9/10/11 speed
SpokeAero spoke
NippleAlloy nipple
Tire TypeClincher
Rider Weight Limit100kg
Brake SystemDisc Brake
Recommended tire pressure90-135psi

Product Geometry

Lightweight Carbon Road Bike Thru Axle Frameset X16 with Wheelset Bundle Parameter

Product Details

Lightweight Carbon Road Bike Thru Axle Frameset X16 with Wheelset Bundle DetailsLightweight Carbon Road Bike Thru Axle Frameset X16 with Wheelset Bundle DetailsLightweight Carbon Road Bike Thru Axle Frameset X16 with Wheelset Bundle DetailsLightweight Carbon Road Bike Thru Axle Frameset X16 with Wheelset Bundle Details

Package Content

Lightweight Carbon Road Bike Thru Axle Frameset X16 with Wheelset Bundle Package Content
