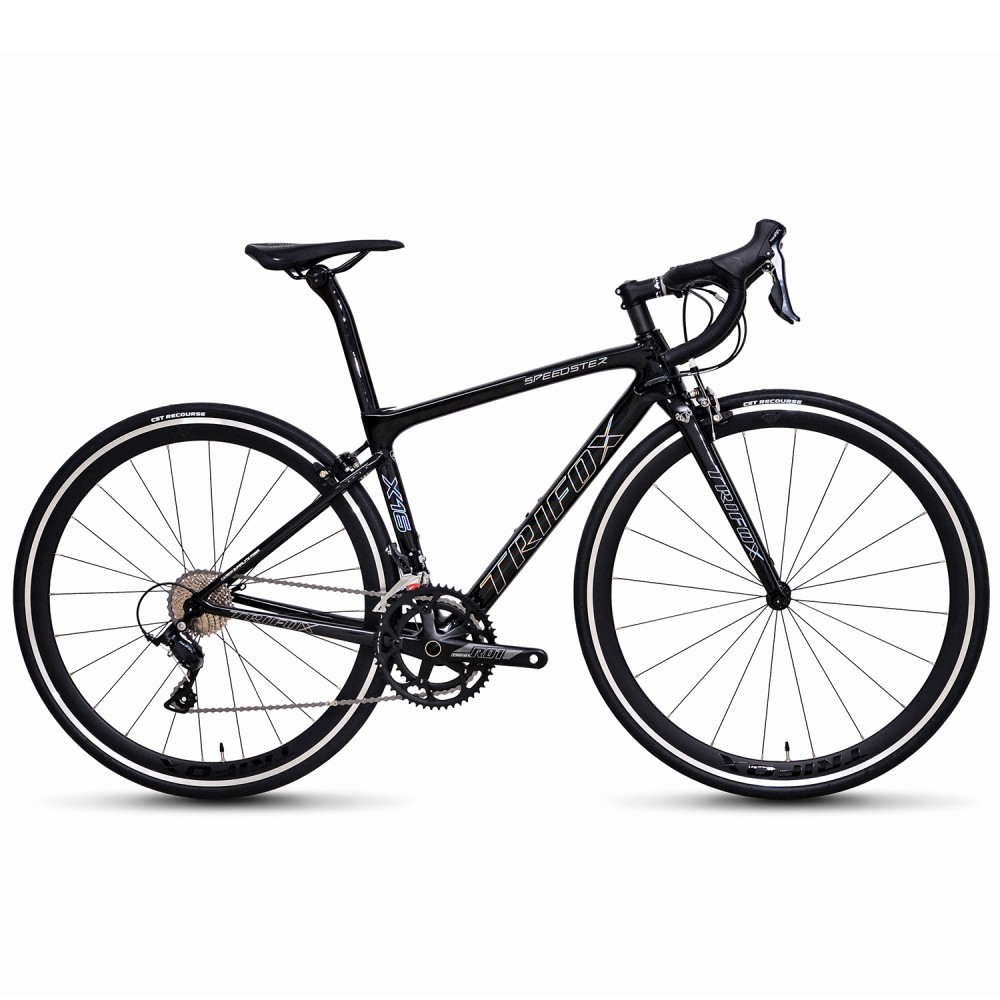

Ultra Light SF-TA 2.0
0 Reseñas
€
1016.64
€1880.64
-46%
Painting:
Tamaño:
-
44cm
-
49cm
-
52cm
-
54cm
-
56cm
-
58cm
Cant.:
En stock
Póliza de garantía,
Aprende más
- Overview
- Specs
- Sizing
- Geometry
- Customers Reviews
700c Carbon Fiber Racing Bike Disc Brake With s-Ride 2*11 Spd
- T800 Carbon Fiber, Ultra-lightweight, UD Matte Finish Frame, Carbon fiber seatpost/fork
- S-Ride SR-610 2*11 gear
- Ultralight aluminum road wheelset, 6 Pawls, 3 Teeth, 120 HD SYSTEM
- TRIFOX hollow integrated cassette
700c Disc Brake Carbon Fiber Road Bike X16TA Specifications
*Please note - spec applies to all sizes unless listed separately
*Please note - spec applies to all sizes unless listed separately
; ?>){kind=icon}
COCKPIT | Seatpost | Carbon fiber, aero-racing, 350mm, 20°Lay Back, round rail saddle |
|---|---|
| Saddle | TRIFOX Road Bicycle Saddle, Comfortable,lightweight, Silica Gel |
| Handlebar | Aluminum alloy Handlebar, W:420mm, 31.8mm, matt black |
| Handlebar Tape | PU or Polyurethane, high quality EVA rubbing material, 2150*30mm |
| Fork | Carbon disc 7000 internal cable routing; 50 mm fork rake/offset; 100mm*12mm Thru Axle |
| Weight | About 8.6KG |
DRIVETRAIN | Shifter | S-Ride ST-R610-L; ST-R610-R, Hydraulic disc brake, 2*11SPD |
|---|---|
| Front Derailleur | S-Ride FD-R500-2 Speed |
| Rear Derailleur | S-Ride RD-R600-11 Speed |
| Cassette | SUNSHINE-11S, 11-34T |
| Cranksets | Aluminum alloy, 11-speed, 34-50T, 170m, Hollow integrated chainring |
| Chain | YBN-11S, 1/2"*3/32"*110L |
| Bottom Bracket | TRIFOX BSA - BB68 (φ 34mm, L 68mm) |
WHEELS & TIRES | Wheel | TRIFOX Aluminium wheelset 700C disc brake, 40mm Rim Depth, 14mm Inner Width, 20.7mmOuter Width |
|---|---|
| Tire | CST 700*28C, Clincher, 48MM F/V |
| Hub | Front TA*100mm; Rear TA x 142mm; 6 Pawls, 3 Teeth, 120 HD SYSTEM |
| Spokes/Nipples | Pillar Stainless Steel, 14G*28H; 14G*28H, J bend |
| Hub Bearing | Front 2 Bearings; Rear 4 Bearings; Ceramic |
| Hub Material | Aluminum Alloy AL6160(body) + AL7075(Alxe) |
| Freehub Body Material | 7075 aluminium alloy; Shimano/SRAM 8-11S; Compatible: SRAM XD 12S / SHIMANO MS MICRO SPLINE 12S |
FRAMESET | Frame | Carbon lightweight bicycle frame, T800 Full Carbon Fiber, Disc Brake (clipper holder: Flat Mount) braking system, Fit for DI2 & Mechanical, BSA - BB68 (φ 34mm, L 68mm), 142mm*12mm Thru Axle |
|---|---|
| Size | 44/49/52/54/56/58cm |
| Color | Hollow, Chameleon Blue, Chameleon Purple, Red & Black |
Carbon frame sizes for road bikes X16TA disc brake Guide
*All measurements provided in cm unless otderewise noted.
| Size | Rider Height | Inseam |
|---|---|---|
| 44cm | 150-156 cm | 60-71cm |
| 49cm | 157-168cm | 72-76cm |
| 52cm | 169-175cm | 77-80cm |
| 54cm | 176-179cm | 81-84cm |
| 56cm | 180-185cm | 85-89cm |
| 58cm | 186-191cm | Over 90cm |
Lightweight Carbon Road Bike Frameset X16TA Geometry
*All measurements provided in cm unless otherwise noted.
| Place | Frame | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|---|
| A (°) | Head Tube Angle | 70 | 71.75 | 72.5 | 73 | 73.5 | 73.5 |
| B (°) | Seat Tube Angle | 76 | 75.5 | 74 | 74 | 73.5 | 73.5 |
| C (mm) | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| D (mm) | BB Drop | 74 | 74 | 74 | 72 | 72 | 72 |
| E (mm) | Wheel Base | 973 | 977 | 979 | 982 | 994 | 1009 |
| F (mm) | Seat Tube Length | 400 | 431 | 462 | 481 | 501 | 522 |
| G (mm) | Stack | 500 | 514 | 527 | 544 | 565 | 591 |
| H (mm) | Top Tube Length Horizontal | 490 | 508 | 531 | 540 | 562 | 577 |
| I (mm) | Reach | 365 | 375 | 380 | 384 | 395 | 402 |
| J (mm) | Head Tube Length | 105 | 115 | 126 | 143 | 163 | 190 |
| K (mm) | Fork Length Full | 371 | 371 | 371 | 371 | 371 | 371 |
