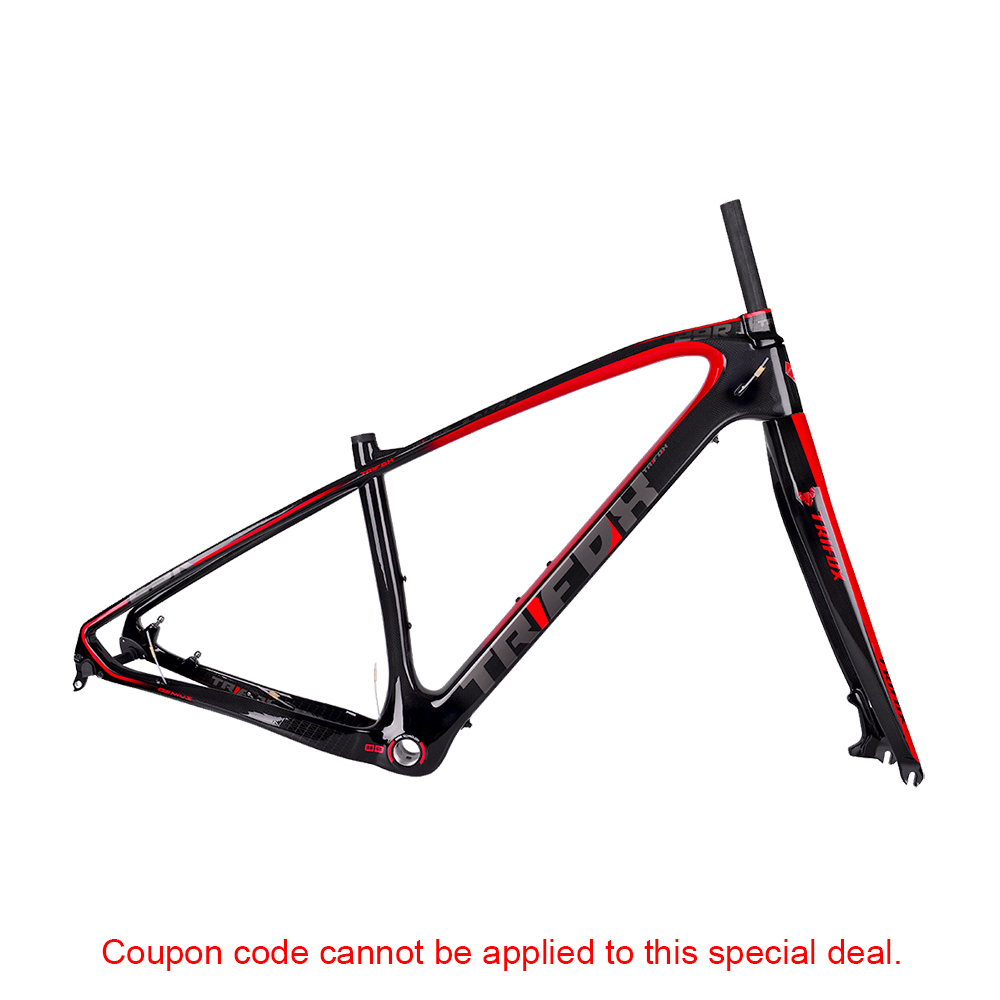

Carbon MTB Frame with Fork MFT200
-
15.5 (150 -165CM)
-
17 (165 - 175CM)
-
19 (175 - 190CM)
- Product Details
- Customers Reviews
29er Carbon MTB Hartail Frameset MFT200
Parameter
| Brand | Trifox |
| Model | MFT200 |
| Product Name | Carbon MTB Hardtail Frameset |
| Type | MTB Frame |
| Style | Hardtail Frameset |
| Material | T800 Full Carbon Fiber |
| Fabric | 3K |
| Available size | 29er 15.5/17/19 inches (S/M/L) |
| Available Color | Red / Black / Purple |
| Bottom Bracket | BB68 - BSA |
| Headtube Diameter | Tapered 1-1 / 8" to 1-1 / 2" |
| Brake | Oil / Mechanical Disc Brake |
| Single chainring drivetrain | Max 34T |
| Double chainring drivetrain | CL48.5 44/30T |
| Triple chainring drivetrain | CL50.0 42/32/24T |
| Max Fork Travel | 120mm |
| Quick Release O.L.D | Ø9mm x 135mm |
| Thru Axle O.L.D | Ø12mm x 142mm (Style: Thru Axle with lock nut) |
| Rear Disc Brake Rotor | 160mm / 180mm |
| Finished: | Glossy(default) or Matt |
| Suitable For Seatpost | 31.6mm |
| Maximum tire size | 2.35" |
| Recommend Wheel Size | 29er |
| Hanger | Quick Release Skewer and Thru Axle Skewer can be changed each other depends on the style of Derailleur Hanger |
| Warranty | 2 years |
| Frame Size | 15.5 | 17 | 19 | |
| A(mm) | BB center to the top of seat tube | 394 | 432 | 483 |
| B(mm) | Top tube length horizontal | 570 | 585 | 600 |
| C(mm) | BB Drop | 55 | 55 | 55 |
| D(mm) | Chainstay length | 440 | 440 | 440 |
| E(°) | Seat tube angle | 73 | 73 | 73 |
| F(°) | Head tube angle | 70 | 70 | 70 |
| G(mm) | Front Center | 641 | 656 | 672 |
| H(mm) | Head tube length | 85 | 95 | 110 |
| I(mm) | Fork offset | 51 | 51 | 51 |
| J(mm) | Stack | 591 | 601 | 615 |
| K(mm) | Reach | 390 | 402 | 412 |
T800 carbon Fiber Toray 29er mountain bike frame with BB68, the weight is only 1200g.
Features 3K Carbon Fiber Woven, harder and more textured.
suitable for seat post with 31.6mm.
Ultra-lightweight, strong, and durable.
Internal Routing and Unique Structure.
Ergonomic design providing you a safer and comfortable riding.
Switch between Quick Release and Thru Axle at will, Quick Release Skewer and Thru Axle Skewer can be changed each other depends on the style of Derailleur Hanger.
(NOTE: The thru-axle shaft hole of the frame is not threaded and must be equipped with a lock nut. Please pay attention to whether the total length is sufficient and whether the nut can enter the thru-axle shaft hole, pay attention to the specification matching.)
Product Weight
| Size / Components | Weight |
| 15.5" | 1239 ± 20g |
| 17" | 1279g ± 20g |
| 19" | 1337g ± 20g |
Recomment Height
| Frame Size | 15.5" / S | 17" / M | 19" / L |
| Recommend Height | 150cm ~ 165cm | 165cm ~ 175cm | 175cm ~ 190cm |
| 4 feet 11 inches ~ 5 feet 5 inches | 5 feet 5 inches ~ 5 feet 9 inches | 5 feet 9 inches ~ 6 feet 3 inches |
| Package Content | |
| Red | 1 x Carbon MTB Frame MFM200 Red |
| 1 x Carbon MTB Fork QMK100 Red | |
| 1 x Quick Release Rear Derailleur Hange | |
| 1 x Headset | |
| 1 x Thick bike stem spacer(48mm) | |
| 1 x Thin bike stem spacer(8mm) | |
| Black | 1 x Carbon MTB Frame MFM200 Red |
| 1 x Carbon MTB Fork QMK100 Black | |
| 1 x Quick Release Rear Derailleur Hange | |
| 1 x Headset | |
| 1 x Thick bike stem spacer(48mm) | |
| 1 x Thin bike stem spacer(8mm) | |
| Purple | 1 x Carbon MTB Frame MFM200 Purple |
| 1 x Carbon MTB Fork TMK100 Purple | |
| 1 x Thru-Axle Rear Derailleur Hanger | |
| 1 x Headset | |
| 1 x Thick bike stem spacer(48mm) | |
| 1 x Thin bike stem spacer(8mm) | |
| NOTE: The Thru Axle Rear Skewer is not included in the package | |
