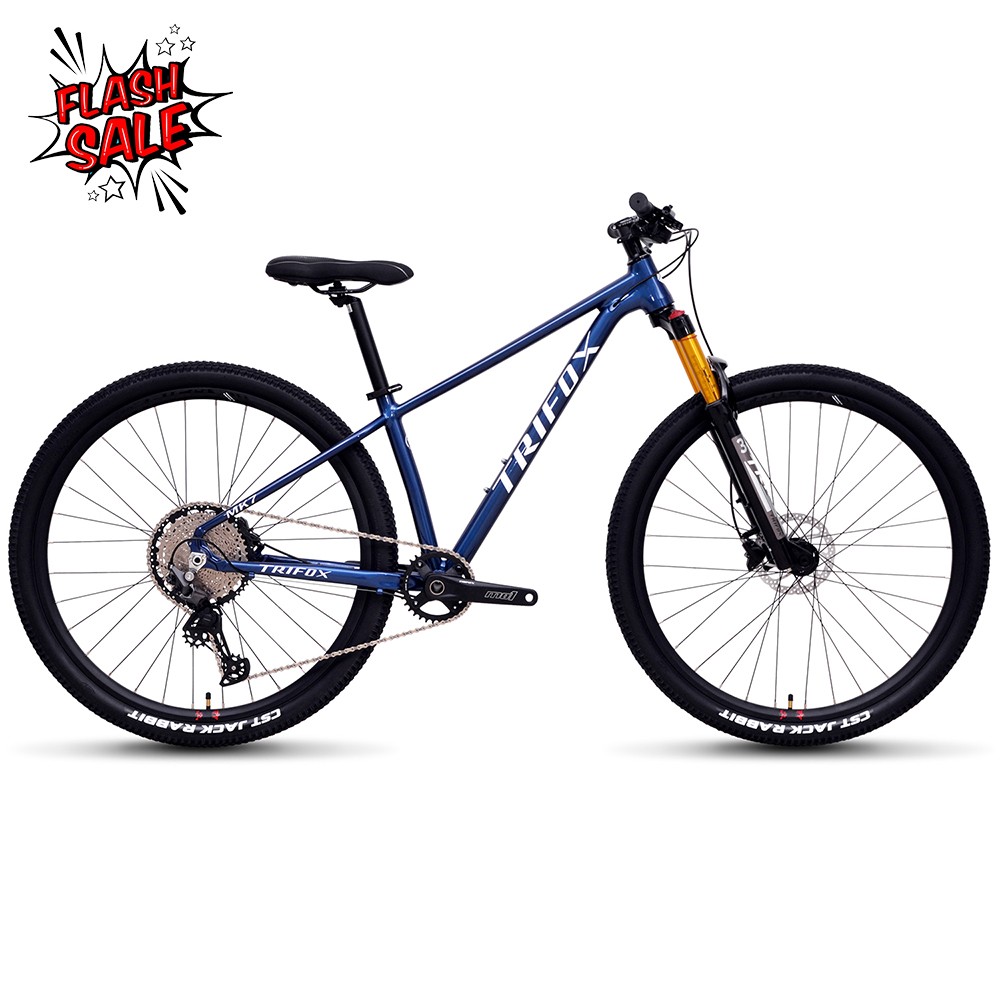

PeakTrail Xtreme
| Frame | Triple butted, 29er Aluminum Mountain Hardtail Frame, Smooth processing integrated flat welding technology, Disc brake, 12*148mm,BSA-BB68(ф 34mm,L68mm) |
| Brake | SHIMANO BR-MT200, Hydraulic Disc, 160mm |
| Shift | SHIMANO Deore SL-M6100 12-speed Shifter |
| Rear Derailleur | SHIMANO Deore M6100, SGS, 12-speed |
| Cassette | SUNSHINE-12-speed, 11-50T |
| Chainrings | 12-speed, 34T, Hollow integrated chainring |
| Chain | YBN 12-speed |
| Bottom Bracket | TRIFOX BSA - BB68 (φ 34mm, L 68mm) |
| Seatpost | TRIFOX Aluminum 350mm Mountain Seatpost, 2-bolt clamp, 31.6mm |
| Saddle | TRIFOX Mountain Bicycle Comfortable, lightweight Saddle |
| Handlebar | TRIFOX Aluminum Flat Handlebar, alloy, 31.8mm |
| Fork | TRIFOX Aluminum Air pressure lockout fork, 120mm travel, alloy steerer, 15*110mm TA |
| Stem | TRIFOX 6061 Aluminum, 35mm, 12-degree rise |
| Size | 15/17cm |
| Color | Blue/Grey |
| Wheel | TRIFOX Alloy Mountain Bike Wheels WM823 BOOST, Aluminium wheelset 29er disc brake, 25mm Rim Depth, 25mm Inner Width, 30mm Outer Width |
| Tire | CST 29*2.1, 40mm, Clincher, 60MM F/V |
| Spoke | Pillar Stainless Steel; 14G*32H; 14G*32H |
| Hub Bearing | Front 2 Bearings; Rear 4 Bearings; Ceramic |
| Hub Material | Aluminum Alloy AL6160(body) + AL7075(Alxe) |
| Freehub Type | 6 Pawls, 3 Teeth, 120 HD SYSTEM |
| Freehub Body Material | 7075 aluminium alloy; Shimano 8/9/10/11S / SRAM XDR 12S |
| Braking System | 6-bolt Disc Brake |
| Weight | 12.5KG |
Product Colors
Product Geometry
| Frame Parts | 15cm | 17cm | |
| Head Tube Angle | A (mm) | 67.5 | 67.5 |
| Seat Tube Angle | B (mm) | 69 | 69 |
| Chainstay Length | C (mm) | 445 | 445 |
| BB Drop | D (°) | 58 | 58 |
| Wheel Base | E (mm) | 1101.2 | 1125 |
| Seat Tube Length | F (mm) | 381 | 432 |
| Stack | G (mm) | 604.3 | 631.6 |
| Top Tube Length Horizontal | H (mm) | 558.3 | 580.9 |
| Reach | I (mm) | 385 | 405 |
| Head Tube Length | J (mm) | 95 | 105 |
| Fork Length Full | K (mm) | 515 | 515 |
