700C Aluminium Road Bike Disc Brake R241
0 Reviews
$
999.00
$1699.00
-41%
Painting:
Size:
-
44 (155-170mm)
-
46 (165-180mm)
Qty:
In stock
Warranty policy,
Learn More
- Overview
- Specs
- Sizing
- Geometry
- Customers Reviews

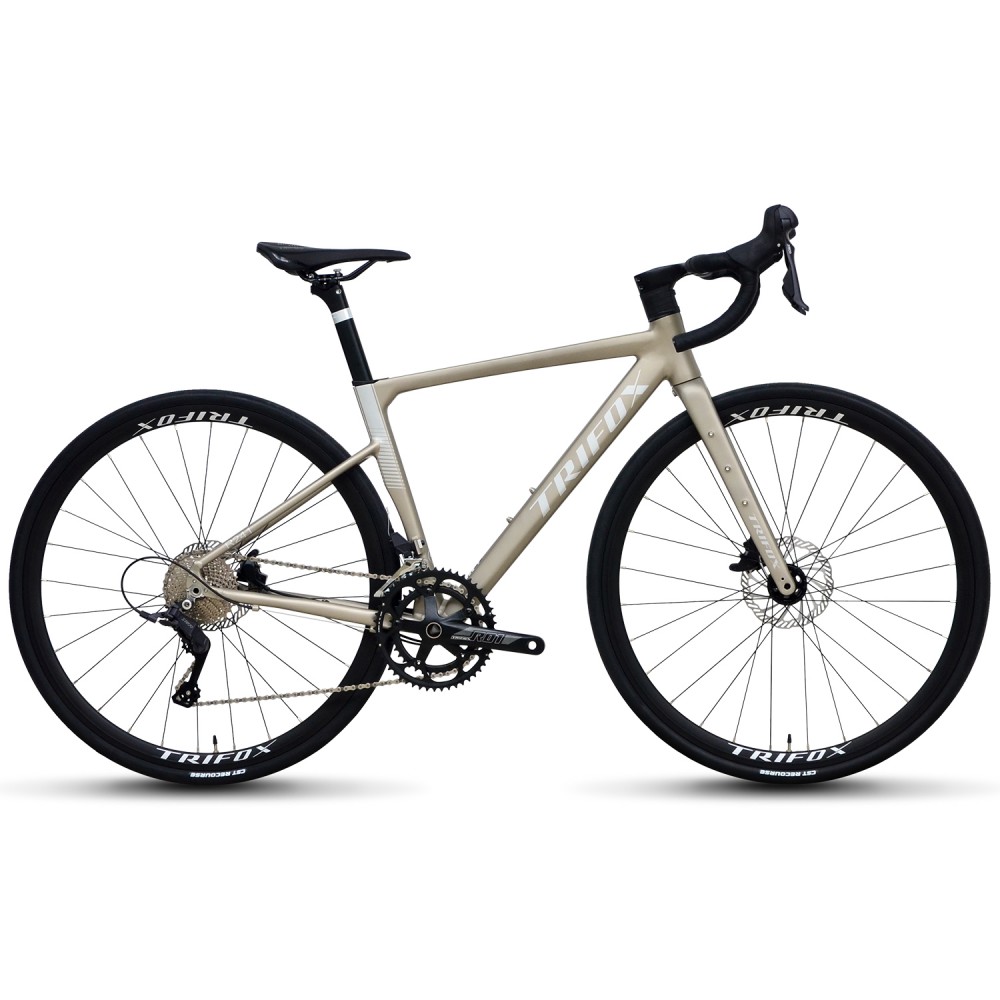

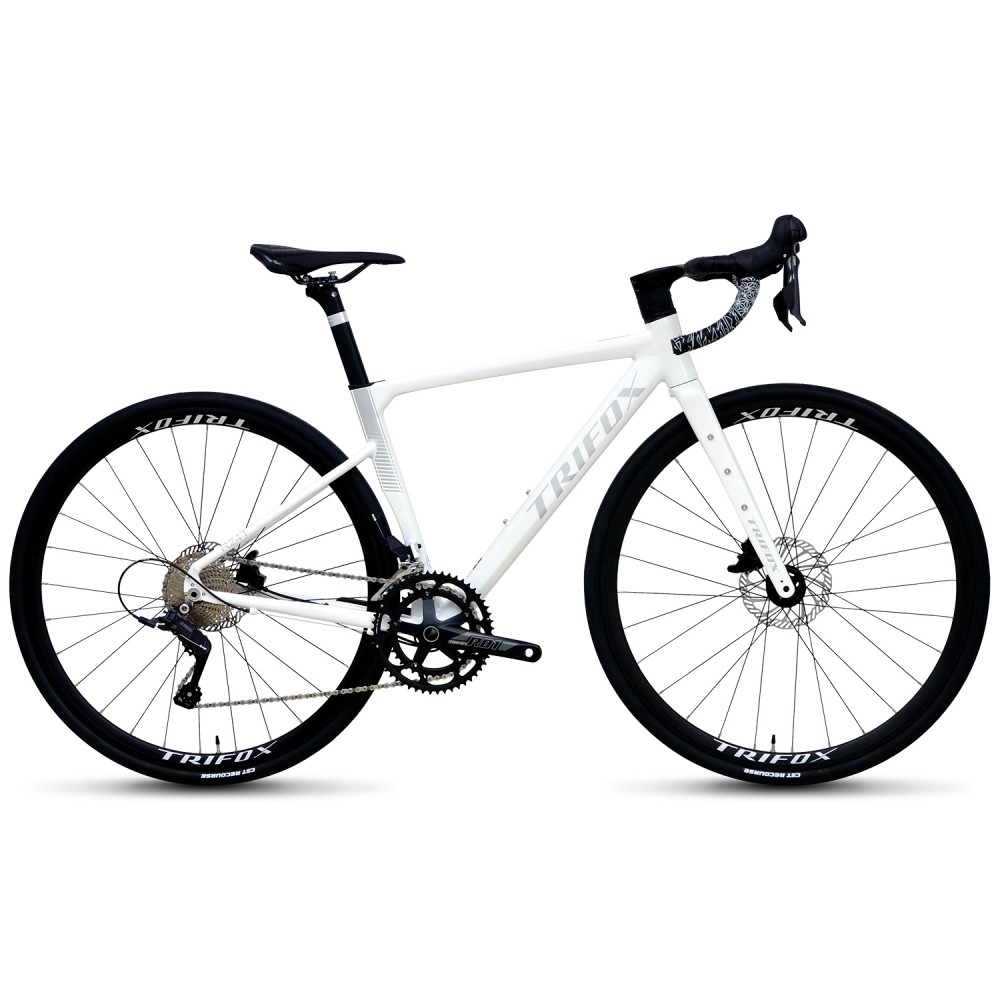

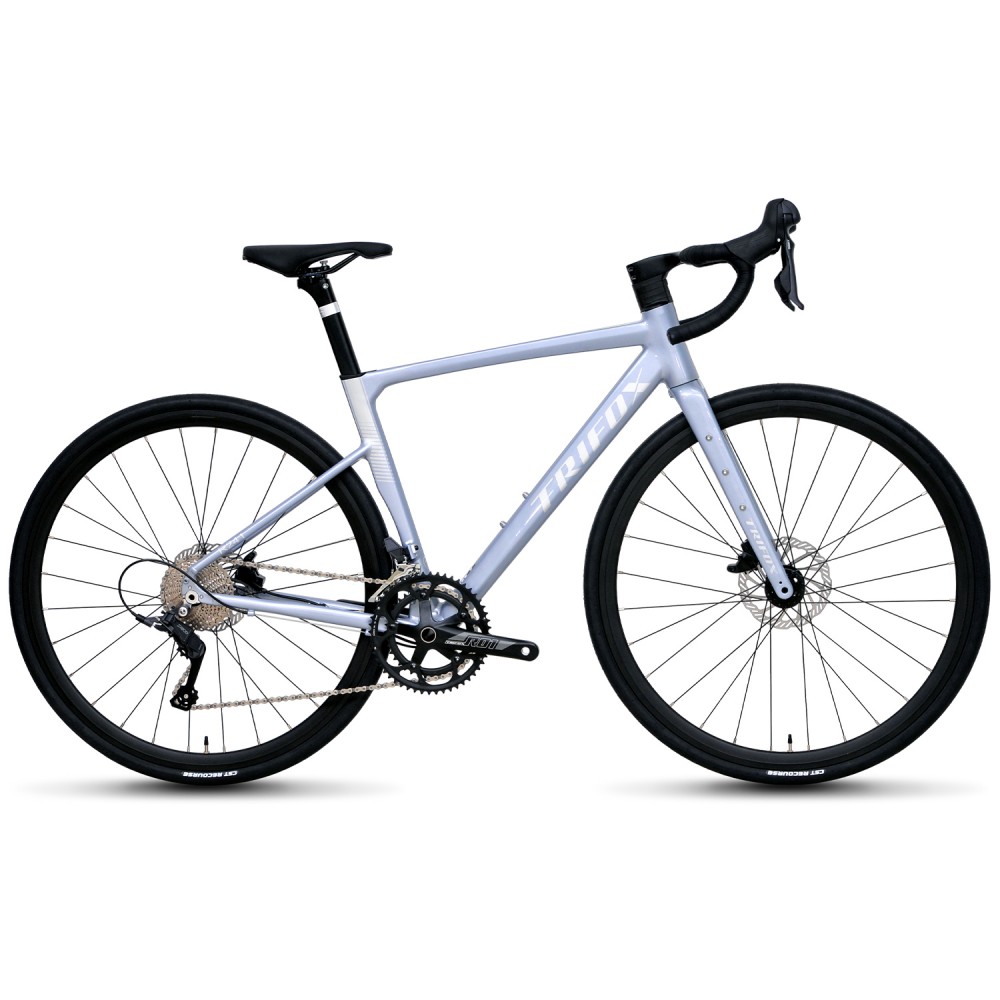

R241 Lightest 700C Aluminium Road Bike Painting
New R241 Carbon Fork & Aluminium Frame Road Bike With s-Ride 2*11spd
- Ultralight seamless tube aluminium
- Large head tube, internal cable routing
- Carbon fiber fork Flat weld + clay baking process
- S-Ride 2*11 gear
- TRIFOX hollow integrated cassette
- S-Ride R510 hydraulic disc brake
700c Disc Brake Aluminium Endurance & Aero Road Bike Specifications
*Please note - spec applies to all sizes unless listed separately
*Please note - spec applies to all sizes unless listed separately
; ?>){kind=icon}
COCKPIT | Seatpost | Aluminum alloy, Internal Lock, 350mm, round rail saddle |
|---|---|
| Saddle | TRIFOX Road Bicycle Saddle, Comfortable,lightweight, Silica Gel |
| Handlebar | Aluminum alloy Integrated Handlebar, W:400*80mm, 23.8mm, Internal wiring, Aluminum alloy T4-T6 heat treatment, Black |
| Handlebar Tape | PU or Polyurethane, high quality EVA rubbing material, 2150*30mm |
| Fork | Carbon disc 7000 internal cable routing; 28.6mm, φ12x100mm Thru Axle; |
| Weight | About 9.8kg |
DRIVETRAIN | Shifter | S-Ride ST-R610-L; ST-R610-R, Hydraulic disc brake, 2*11SPD |
|---|---|
| Front Derailleur | S-Ride FD-R500-2 Speed |
| Rear Derailleur | S-Ride RD-R600-11 Speed |
| Cassette | SUNSHINE-11S, 11-34T |
| Cranksets | Aluminum alloy, 11-speed, 34-50T, 170m, Hollow integrated chainring |
| Chain | YBN-11S, 1/2"*3/32"*110L |
| Bottom Bracket | TRIFOX BSA - BB68 (φ 34mm, L 68mm) |
WHEELS & TIRES | Wheel | TRIFOX Aluminium wheelset 700C disc brake, 40mm Rim Depth, 14mm Inner Width, 20.7mmOuter Width |
|---|---|
| Tire | CST 700*28C, Clincher, 48MM F/V |
| Hub | Front TA*100mm; Rear TA x 142mm; 6 Pawls, 3 Teeth, 120 HD SYSTEM |
| Spokes/Nipples | Pillar Stainless Steel, 14G*28H; 14G*28H, J bend |
| Hub Bearing | Front 2 Bearings; Rear 4 Bearings; Ceramic |
| Hub Material | Aluminum Alloy AL6160(body) + AL7075(Alxe) |
| Freehub Body Material | 7075 aluminium alloy; Shimano/SRAM 8-11S; Compatible: SRAM XD 12S / SHIMANO MS MICRO SPLINE 12S |
FRAMESET | Frame | Alloy lightweight bicycle frame, AL6061 Aluminum Alloy, disc brake caliper system, BSA-BB68(φ34mm,L68mm), Aluminum alloy T4-T6 heat treatment, 12x142mm Thru Axle, Ultralight seamless tube aluminium |
|---|---|
| Size | 155-170mm（44）; 165-180mm （46） |
| Color | Blue/White/Champagne Gold |
Best 700C Lightweight Aluminium Road Bike Frame Sizing by Height Guide
*All measurements provided in cm unless otderewise noted.
| Size | Rider Height | Inseam |
|---|---|---|
| 44cm | 155-170mm | 65-80mm |
| 46cm | 165-180mm | 75-89mm |
Carbon Road Fork & Bike Aluminium R241 Geometry
*All measurements provided in cm unless otherwise noted.
| Place | Frame | 44cm | 46cm |
|---|---|---|---|
| A (°) | Head Tube Angle | 72 | 72 |
| B (°) | Seat Tube Angle | 74 | 74 |
| C (mm) | Chainstay Length | 410 | 410 |
| D (mm) | BB Drop | 70 | 70 |
| E (mm) | Wheel Base | 989.8 | 999.9 |
| F (mm) | Seat Tube Length | 440 | 460 |
| G (mm) | Stack | 523.6 | 542.7 |
| H (mm) | Top Tube Length Horizontal | 546.5 | 555.9 |
| I (mm) | Reach | 396.3 | 400.3 |
| J (mm) | Head Tube Length | 115 | 135 |
| K (mm) | Fork Length Full | 375 | 375 |
